Sample questions and answers

These examples come from the published collection. Choose Learning to study questions in sequence, or Exam to check your knowledge.

For more complete vessel protection when using an impressed current cathodic system

One correct answer

  • all ship's service alternators have additional temperature sensing devices and a thermal recorder installed
  • machinery on deck and in the engineroom is first coated with zinc chromate before final painting
  • the hull's magnetic fields are aligned with a solid-state degaussing circuit using SCR's
  • straps connect the rudder with the hull and the propeller shaft is grounded through a slip ring/brush arrangement✓ Correct answer
When reading electrical motor controller diagrams, it helps to know that

One correct answer

  • current paths in the control circuit are drawn as heavy lines and in the power circuit as lighter lines
  • current paths in the power circuit are drawn as heavy lines and in control circuit as lighter lines✓ Correct answer
  • circuits subject to 500 volts or greater are drawn as heavy lines and below 500 volts as lighter lines
  • circuits subject to 500 volts or greater are drawn as light lines and below 500 volts as heavy lines
If a small electric motor has been submerged in saltwater for a short period of time, you should

One correct answer

  • send it ashore for rewinding
  • rinse it with warm freshwater and bake it dry in an oven✓ Correct answer
  • soak it in a bucket of commercial solvent and bake with internal heat
  • clean it with carbon tetrachloride and blow it out with compressed air
What precaution should be taken with a vessel's impressed current cathodic protection system after a drydocking period during which the hull has been painted?

One correct answer

  • Output currents should be carefully monitored to assure operation at nearly 100 % capacity for proper curing.
  • Reference cell voltages should be maintained at half the normal range for approximately 48 hours.
  • The unit should remain off for the specified amount of time so as not to disturb curing.✓ Correct answer
  • A slight (10-15%) overcurrent to the anodes should be allowed in order to speed drying.

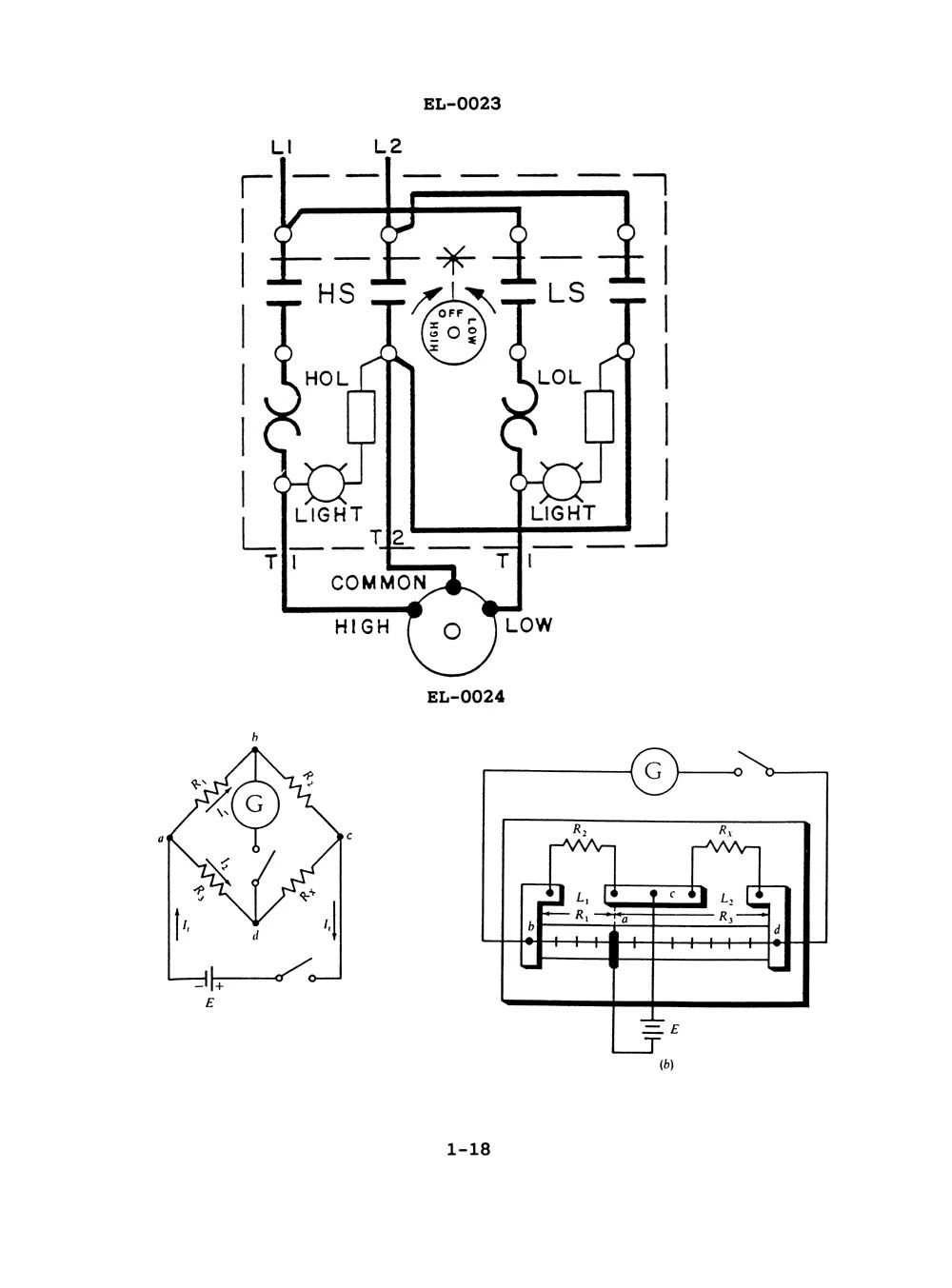

The illustrated EL-0024 circuit is a wheatstone bridge If the meter "G" reads 0 with the switch closed then

One correct answer

Question illustration
  • the current through R1 - R2 is equal to the current through R3 - Rx✓ Correct answer
  • the voltage across b - d is equal to the voltage of E
  • the resistance of Rx is equal to the resistance of R2
  • all the above are true
